JYC30
STATIC PRESSURE ULTRA PRECISION LATHE
★The spindle and feed axis of the machine tool adopt the cutting-edge technology of domestic and international machine tool design and production-constant pressure and static pressure technology,with high motion accuracy and good rigidity.
★Can be used for hard turning of quenched parts, metal cutting roundness up to 0.2μm,used foroptical component processing,turning diameter up to 200mm,surface roughness Ra<0.1.The development of high-precision software for the turningof spherical, aspherical, off-axis and free-form components provides effective support for efficient machining.
Note:
1)For the processing of optical parts and brittle parts,special vacuum adsorptionfixtures are required.

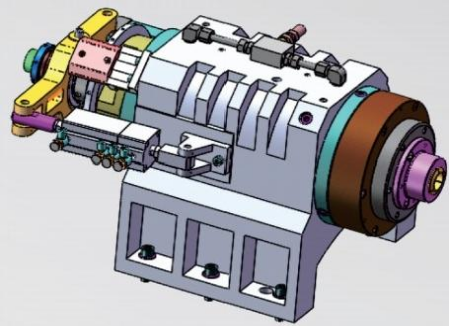

2)The hard turning machine is equipped with static pressure spindle,driven by hard rails and lead screws,forming an economical ultra-precision hard turning,which can adapt to a wider range of working conditions.
MACHINE SPECIFICATION PARAMETERS
項目ITEM | JYC30 | |
加工能力 Capacity | 最大回轉直徑Max swing diameter | φ240mm |
橫向刀架體上回轉直徑 Rotation diameter on the lateral tool holder body | φ110mm | |
最大加工直徑Max. turning diameter | φ200mm | |
最大加工長度Max. turning length | 100mm | |
最高回轉速度Max spindle speed | 4000r/min | |
主軸 Spindle | 主軸貫通直徑Spindle through diameter | φ30mm |
主軸外圓面徑向跳動 Radial runout of the outer circle of the spindle | ≤0.001 mm | |
主軸回轉精度Spindle rotation accuracy | ≤0.0005 mm | |
重復定位精度 Repeatability | ≤0.0005 mm | |
主軸彈簧夾頭柄徑Spindle chuck shank diameter | 中 36 mm | |
快進速度 Fast forward speed | X軸快移速度 X-axis rapid traverse | 20m/min |
Z軸快移速度 Z-axis rapid traverse | 20m/min | |
行程 Travel | X軸移動量X-axis travel | 250mm |
Z軸移動量Z-axis travel | 230mm | |
電機 motor | 主軸電機(內藏式馬達)Spindle motor (built-in motor) | AC5.5/7.5kW |
進給電機Feed motor X/Z | 直線電機 Linear motor | |
其它 Others | 總電氣容量Required electric power | 6 kVA |
主軸中心高度Spindle center height | 986mm | |
機床尺寸(長×寬×高)Floor Space | 1310*1180*1660mm | |
機床重量Mass of machine | 約 1200kg about 1200kg | |
